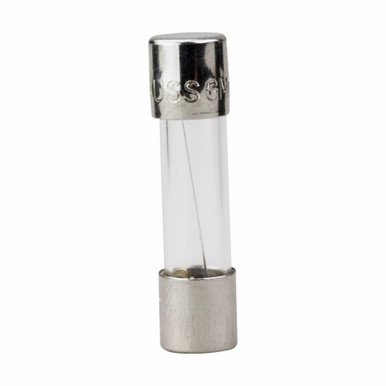

Bussmann S506-8-R Time Delay Fuse

Bussmann S506-8-R Time Delay Fuse

Engineered for Reliable Circuit Protection

Overview

The Bussmann S506-8-R is a premium time-delay fuse designed to safeguard electrical circuits from overloads and short circuits. With an 8 Amp rating and 600V AC/DC voltage capacity, it combines robust protection with selective coordination, making it ideal for applications requiring tolerance to temporary inrush currents without compromising safety.

Key Features

• Time-Delay Design: Withstands momentary surges (e.g., motor startups or transformer inrush) without nuisance tripping, while reliably interrupting sustained overloads.
• High Performance: Rated for 8A at 600V AC/DC, with an interrupting rating of 100,000A (100kA) to handle severe faults.
• Durable Construction: Features a ceramic body for thermal stability and sand-filled construction to quench arcs swiftly.
• Compliance: UL Listed, CSA Certified, and meets IEC standards for global reliability.
• Easy Identification: Clear amperage markings and a rejection-style base (R-type) prevent accidental mismatched replacements.

Applications

• Industrial Control Systems: Protects motors, transformers, and solenoids.
• HVAC Equipment: Ideal for compressors and fans with high startup currents.
• Power Supplies & Automation Panels: Ensures uninterrupted operation in PLCs, drives, and branch circuits.
• Renewable Energy Systems: Safeguards inverters and battery management setups.

Specifications

Why Choose Bussmann?
Backed by Eaton’s legacy of innovation, this fuse delivers unmatched durability and precision for critical electrical systems. Minimize downtime and enhance safety with a trusted industry-standard solution.

Note: Always verify compatibility with local codes and equipment specifications before installation.
